Wedge Mesh Filter

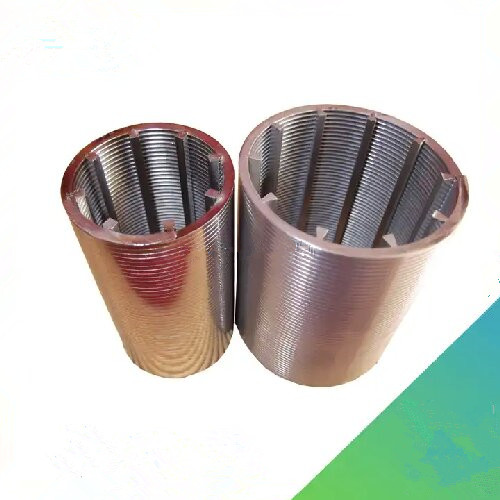

Wedge mesh filter, also known as Johnson filter, is a filter element made by welding a specially made stainless steel trapezoidal (wedge shaped) wire (winding) winding on a set of longitudinal support rods (ribs, support rods) arranged in a circumferential manner. The wedge mesh filter element, also known as Johnson filter element, is very important and widely used in the petrochemical industry.

Material: stainless steel wire or galvanized steel wire
Outside:Ф 1 "-60"
The Slot : 0.1mm-5.0mm

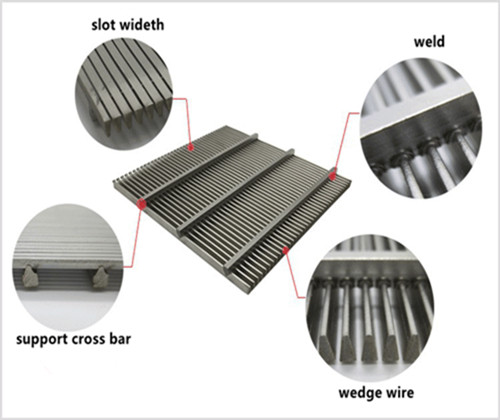

The wire: 2.0mmx3.0mm, 3.0mmx4.6mm, 3.0mmx5.0mm
The rods: 3.8mmx22mm, 3.8mmx32mm, 3.8mmx45mm, 3.8mmx50mm.
The rod can be circular, triangular, or trapezoidal.
The warp is triangular wrie ( V-shaped wire).
Connection method: welding or threaded connection.
Standard length: 1m-5.85m
