Five-Layer Sintered Wire Mesh

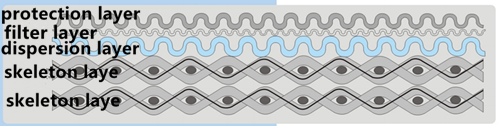

The five layer sintered mesh is the most widely used standard structure sintered mesh. A composite sintered mesh plate is made by stacking 5 layers of stainless steel mesh together according to the structure of protection layer, filter layer, dispersion layer, skeleton layer, and skeleton layer, and then undergoing vacuum high-temperature sintering, rolling and pressing processes. It has unparalleled characteristics such as high strength, stable filtration accuracy, good continuity, and easy molding compared to other filter materials.


Product characteristics:
1. High strength: The 4th and 5th layers use 12x64 diagonal mesh, which has good pressure resistance and strength
2. Strong corrosion resistance: all made of 316L material, with good corrosion resistance
3. Good heat resistance: can withstand a high temperature of 600 degrees Celsius
4.Easy to clean: The 316L material ensures the tension of the sintered mesh
5. High flow rate per unit area: surface filtration, high flow rate per unit area
6. High precision: The filter layer is in the second layer, with uniform pores to ensure filtration accuracy

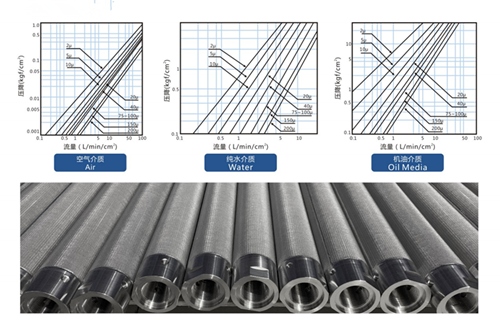

Product pressure drop and flow characteristics：
