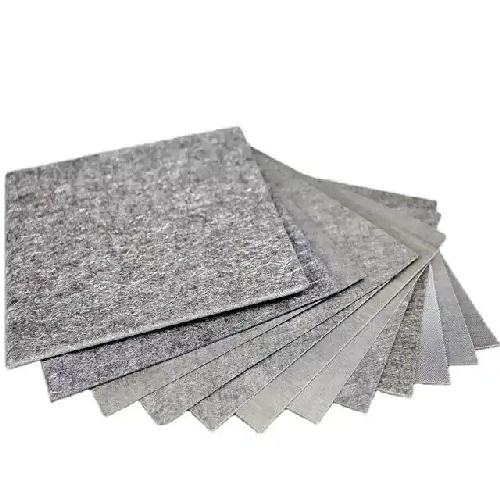

Metallic Fiber Felt



The metal fiber felt is made of metal fibers with a diameter of micrometers, which are laid non-woven and laminated and sintered at high temperature. The finished felt is formed by different pore size layers to form a gradient of hollow pores, which can control extremely high filtration accuracy and greater pollutant absorption. It has a three-dimensional network, porous structure, high porosity, large surface area, and uniform pore size distribution, and can continuously maintain the filtration effect of the filter surface. At the same time, it has the characteristics of good permeability, corrosion resistance, high temperature resistance, foldable, renewable, and long service life, making it a new generation of efficient metal filter materials suitable for use in high-temperature, high-pressure, and corrosive environments
Our company can accept customer requests to produce sintered felt with a precision of 3-100 microns, and can provide products with sizes ≤ 1200x1500mm and below.

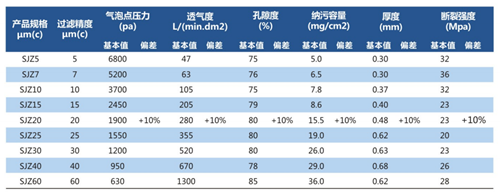

Product specifications and technical parameters:

REMARKS:
 1. The determination of filtration accuracy and pollutant capacity shall be carried out in accordance with the provisions of GB/T8853-2002.
2.The measurement of bubble point pressure shall be carried out in accordance with the provisions of GB/T5249.
3. The measurement of air permeability shall be carried out in accordance with the provisions of GB/T5453, with a pressure difference of 200Pa and air as the medium.
4. The determination of fracture strength shall be carried out in accordance with the provisions of GB/T228
